Applications

Ideal for

· Wire Covers & Cable Management: Protect exposed wires, organize cable routing, custom clips for PCB layouts

· Enclosures & Housings: Custom electronics boxes, protective covers, connector guards

· Mounting Brackets & Standoffs: PCB spacers, component holders, vibration isolation feet

· Connectors & Adapters: Custom cable organizers, port covers, alignment fixtures

· Test Fixtures & Jigs: Assembly aids, alignment tools, functional prototypes

· Rapid Prototyping: Design validation, fit-and-function testing, quick iterations

Not For (Limitations)

· High-Temperature Environments: Not suitable for >60°C continuous exposure (ovens, heat sinks, thermal stress)

· High-Precision Tolerances Beyond ±0.05mm: Resin 3D printing has physical limits; tighter tolerances require injection molding or CNC

· Flexible/Elastomer Applications: ABS-like resin is rigid; not suitable for gaskets, seals, or flexible components (we can source flexible resins on request)

· Food-Contact or Medical Applications: Not FDA/food-safe certified; requires customer validation for regulated uses

· Transparent/Optical Parts: ABS-like resin is opaque; not suitable for lenses or light-transmitting components

Material Flexibility

ABS-like resin is our default, but we're open to acquiring specialty resins based on your needs:

· Flexible Resins: For gaskets, seals, vibration dampers

· High-Temperature Resins: For thermal-resistant components (up to 200°C+)

· Tough/Impact-Resistant Resins: For high-stress mechanical parts

· Specialty Resins: Fire-retardant, conductive, or other custom properties

Discuss Your Material Requirements

Need a Different Material? We Can Source It.

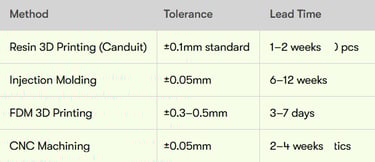

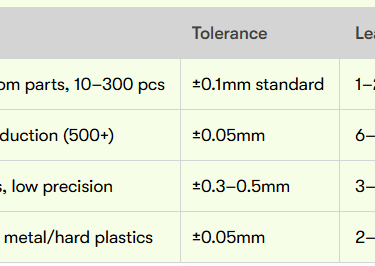

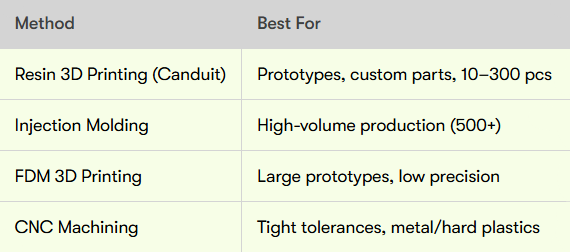

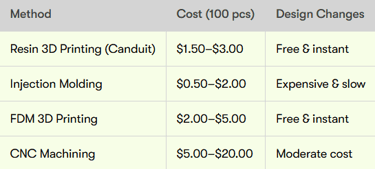

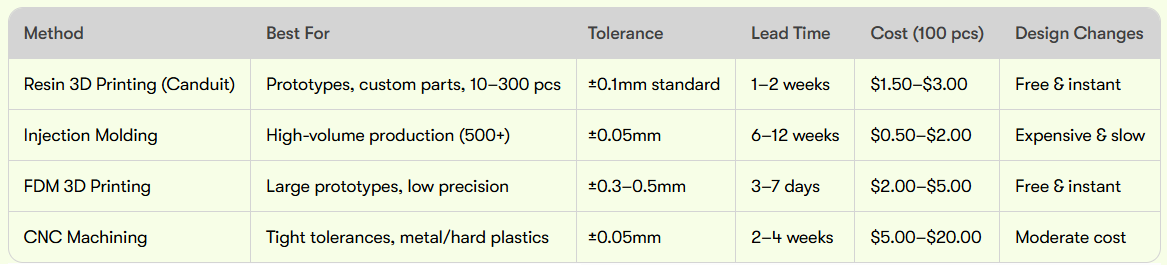

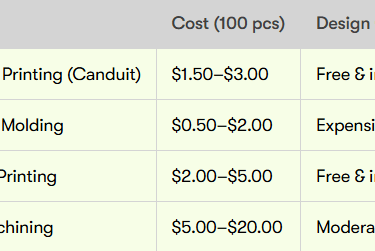

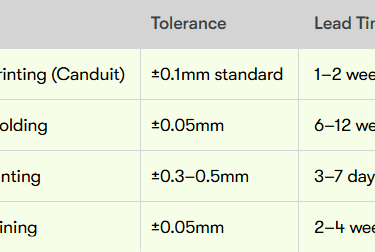

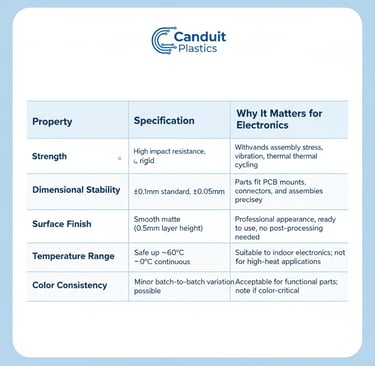

How ABS-like resin compares to injection molding, other 3D printing methods, and CNC machining for electronics applications.

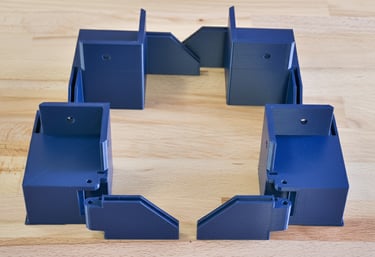

Real-World Applications

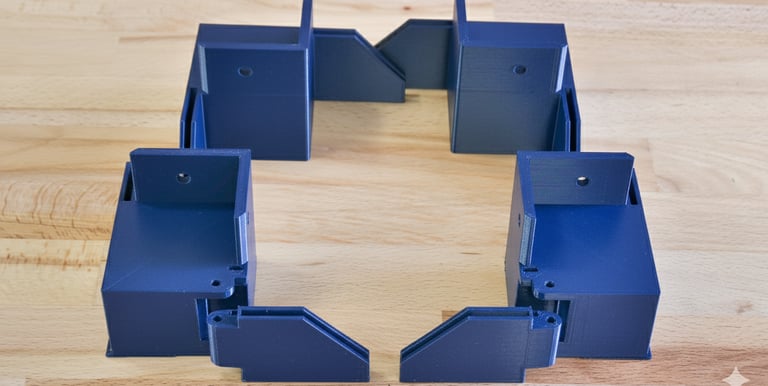

Enclosure for Electronics Housing

· Material: ABS-like resin

· Batch: 50 pieces

· Tolerance: ±0.05mm (critical connector mating surfaces)

· Lead Time: 1–2 weeks

· Cost: ~$2.50/piece

· Why Resin 3D Printing: Tight tolerances for connector fit, custom geometry, rapid prototyping

Wire Cover for PCB Assembly

· Material: ABS-like resin

· Batch: 150 pieces

· Tolerance: ±0.1mm (standard)

· Lead Time: 1–2 weeks

· Cost: ~$2.00/piece

· Why Resin 3D Printing: No tooling cost, fast iteration, precise fit to PCB layout

Design Your Parts for Success

· Wall Thickness: Minimum 1.5mm (structural), 2–3mm for threaded/high-stress areas

· Hole Sizing: Design holes 0.1–0.2mm smaller than final size; we can ream or tap if needed

· Support Marks: Expect 0.1–0.2mm raised areas where supports attach; optimize orientation to avoid critical surfaces

· Material Limitations: Not suitable for >60°C, prolonged UV, or flexible applications

Send Your STL for a Free Design Review

Every Batch Inspected, Every Part Verified

We calibrate before each print run, inspect the first article against your CAD, and verify 10–15% of every batch with precision calipers. Full inspection reports included.

Learn More About Our QA Process

Frequently asked questions

Can you print in colors other than the standard?
Standard ABS-like resin is opaque with minor batch-to-batch color variation. We can source specialty colors on request; contact us for details.

What's the maximum temperature ABS-like resin can handle?
Safe for continuous exposure up to ~60°C. Beyond that, consider high-temperature specialty resins.

Can you print flexible parts?
Not with standard ABS-like resin. We can source flexible resins for gaskets, seals, and dampers; ask in your quote request.

Do you offer post-processing like painting or coating?
We handle cleaning and packaging. For advanced finishing, we can recommend local partners.
